A Composite Material Like Never Before.

HX5 is an ultralight and mechanically superior composite material, designed by Lockheed Martin Skunk Works® in a strategic effort to create the most capable, balanced and versatile thermoplastic blend in the world. HX5 boasts best-in-class mechanical properties that rival many traditional aerospace-grade materials at a fraction of the weight and is readily manufacturable by almost any process, from CNC machining to injection molding to extrusion. HX5 is an exceptional alternative to machined aluminum in nearly every application, offering equal or better performance at half the weight.

hx5 nanocomposite material

Having already been manufactured for use in jet fighters, high-speed helicopters, UAVs, amphibious transport vehicles, missiles, rockets and satellites, HX5 has proven its sustainability for a wide range of applications and environments. And, with clear advantages over machined aluminum, thermoset composites and other reinforced thermoplastics, HX5 is the only material for your performance challenges.

  • Chemically resistant: solvents, fuels, skydrol and DEET
  • Extremely corrosion resistant
  • Highly compatible with injection molding and extrusion
  • Machines like aluminum without chipping, cracking, galling or gumming
  • Extremely coatable (powder, electrostatic, spray)
  • Ideal for adhesive bonding and ultrasonic welding
  • Can be molded into complex shapes with very thin sections with exceptional dimensional stability
hx5 nanocomposite material

Having already been manufactured for use in jet fighters, high-speed helicopters, UAVs, amphibious transport vehicles, missiles, rockets and satellites, HX5 has proven its sustainability for a wide range of applications and environments. And, with clear advantages over machined aluminum, thermoset composites and other reinforced thermoplastics, HX5 is the only material for your performance challenges.

  • Chemically resistant: solvents, fuels, skydrol and DEET
  • Extremely corrosion resistant
  • Highly compatible with injection molding and extrusion
  • Machines like aluminum without chipping, cracking, galling or gumming
  • Extremely coatable (powder, electrostatic, spray)
  • Ideal for adhesive bonding and ultrasonic welding
  • Can be molded into complex shapes with very thin sections with exceptional dimensional stability

MECHANICAL PROPERTIES

HX5 has 90% the strength AND near 50% the density of 6061 T6 aluminum

Mechanical Properties ASTM HX5 (73˚F) 6061 T6 (73˚F)
Tensile Strength, (Ksi) D638 38.2 40
Density, (lbs./ft3) D792 89 169
Specific Strength, (lb/in2)/(lb/in3)​ 741,700 410,300

THERMAL PROPERTIES

HX5 is dimensionally stable at elevated temperatures

Thermal Properties ASTM HX5 6061 T6
Coefficient of Thermal Expansion, (L/L/°F) E 831 2.11 X 10-6 13.1 X 10-6

ENVIRONMENTAL STABILITY

HX5 is engineered to survive

  • Meets rigorous DoD guidelines for flame, smoke, and toxicity

  • Extremely resistant to solvents, fuels, lubricants, and chemicals

  • Satisfies NASA spacecraft limits on outgassing and radiation resistance stability (doesn’t degrade in space)

  • High temperature capable

  • Passed accelerated lifetime thermal cycling and high-temperature thermal stability

  • Extremely corrosion resistant

MANUFACTURABILITY

Engineered to be versatile

  • Drop-in material for many injection molding operations

  • Low shrinkage and excellent dimensional stability (0.5% vs. 2.0%)

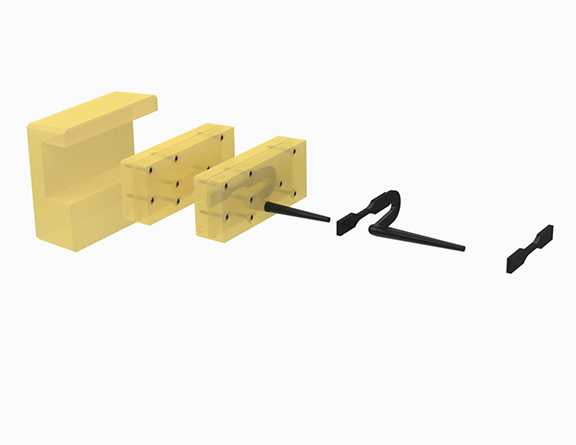

  • Enables part consolidation into a single molded component

  • Compatible with metallic insert molding operations for multifunction products

  • One material formulation compatible with many manufacturing operations:

    • Injection molding

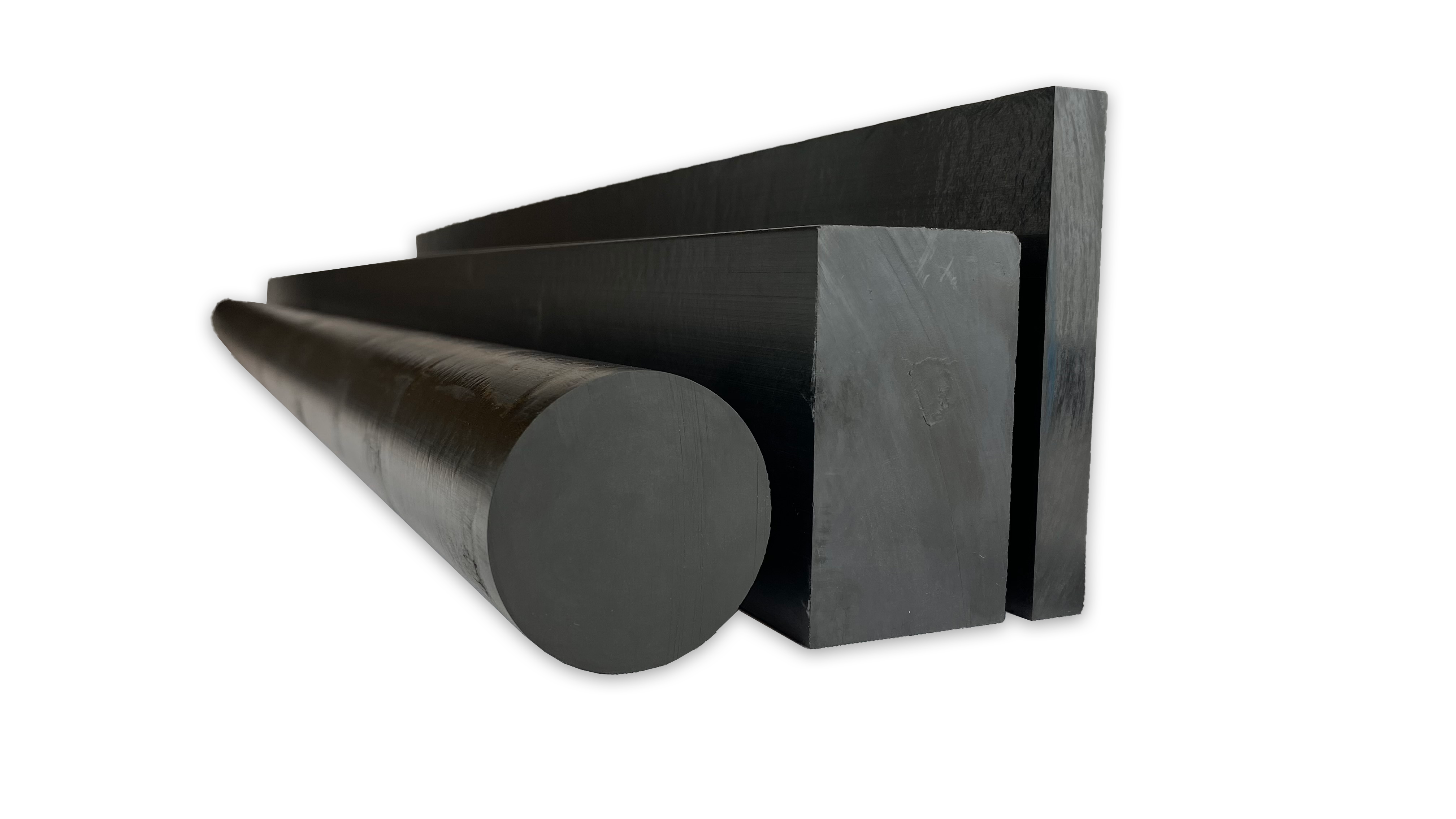

    • Profile extrusion
    • Compression molding
    • Thermoforming

SECONDARY OPERATIONS

HX5 is engineered to process like a metal

  • Machines like aluminum without chipping, cracking, galling or gumming

  • Drills and threads like metal

  • Unlike most solvent resistant materials, can be coated, primed, plated and adhesively bonded

  • Can be metallized to meet EMI shielding requirements

MECHANICAL PROPERTIES

HX5 has 90% the strength AND 50% the weight of 6061 T6 aluminum

Mechanical Properties ASTM HX5 (73˚F) 6061 T6 (73˚F)
Tensile Strength, (Ksi) D638 38.2 40
Density, (lbs./ft3) D792 89 169
Specific Strength, (in) 741,700 410,300

THERMAL PROPERTIES

HX5 is dimensionally stable at elevated temperatures

Thermal Properties ASTM HX5 6061 T6
Coefficient of Thermal Expansion, (L/L/°F) E 831 2.11 X 10-6 13.1 X 10-6

ENVIRONMENTAL STABILITY

HX5 is engineered to survive

  • Meets rigorous DoD guidelines for flame, smoke, and toxicity

  • Extremely resistant to solvents, fuels, lubricants, and chemicals

  • Satisfies NASA spacecraft limits on outgassing and radiation resistance stability (doesn’t degrade in space)

  • High temperature capable

  • Passed accelerated lifetime thermal cycling and high-temperature thermal stability

  • Extreme corrosion resistant

MANUFACTURABILITY

Engineered to be versatile

  • Drop-in material for many injection molding operations

  • Low shrinkage and excellent dimensional stability (0.5% vs. 2.0%)

  • Enables part consolidation into a single molded component

  • Compatible with metallic insert molding operations for multifunction products

  • One material formulation compatible with many manufacturing operations:

    • Injection molding
    • Profile extrusion
    • Compression molding
    • Thermoforming

SECONDARY OPERATIONS

HX5 is engineered to process like a metal

  • Machines like aluminum without chipping, cracking, galling or gumming

  • Drills and threads like metal

  • Unlike most solvent resistant materials, can be coated, primed, plated and adhesively bonded

  • Can be metallized to meet EMI shielding requirements

  • Performance – excellent in a wide range of demanding environments

  • Weight – up to half the weight of aluminum components

  • Production – high rate manufacturing of thousands of parts per day

  • Design – high quality, dimensionally tolerant, complex, integrated functionality
